gridpp::StructureFunction Class Reference

#include <gridpp.h>

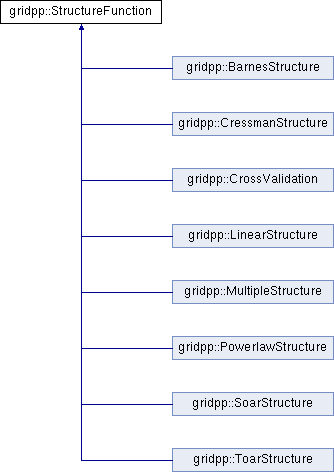

Inheritance diagram for gridpp::StructureFunction:

Public Member Functions
virtual StructureFunctionPtr	clone () const =0
virtual float	corr (const Point &p1, const Point &p2) const =0
	Correlation between two points. More...
virtual vec	corr (const Point &p1, const std::vector< Point > &p2) const
virtual float	corr_background (const Point &p1, const Point &p2) const
	Correlation between a background point and an observation points. More...
virtual vec	corr_background (const Point &p1, const std::vector< Point > &p2) const
virtual float	localization_distance (const Point &p) const
	Maximum distance for which an observation can have an impact (localization) More...
	StructureFunction (float localization_distance=0)

Static Public Attributes
static const float	default_min_rho = 0.0013

Protected Member Functions
float	barnes_rho (float dist, float length) const
	Barnes correlation function. More...
float	cressman_rho (float dist, float length) const
	Cressman correlation function. More...
float	linear_rho (float diff, float min_corr) const
	Linear correlation function. More...
float	powerlaw_rho (float dist, float length) const
	Powerlaw correlation function. More...
float	soar_rho (float dist, float length) const
	Compactly supported second-order autoregressive correlation function. More...
float	toar_rho (float dist, float length) const
	Compactly supported third-order autoregressive correlation function. More...

Protected Attributes
float	m_localization_distance

Detailed Description

Covariance structure function.

Constructor & Destructor Documentation

StructureFunction()

gridpp::StructureFunction::StructureFunction

(

float

localization_distance = 0

)

Member Function Documentation

barnes_rho()

float gridpp::StructureFunction::barnes_rho ( float  dist, float  length  ) const

protected

Barnes correlation function.

Parameters

dist	Distance between points. Same units as 'length'
length	Length scale

Returns

Barnes rho

clone()

virtual StructureFunctionPtr gridpp::StructureFunction::clone ( ) const

pure virtual

Implemented in gridpp::CrossValidation, gridpp::CressmanStructure, gridpp::LinearStructure, gridpp::PowerlawStructure, gridpp::ToarStructure, gridpp::SoarStructure, gridpp::BarnesStructure, and gridpp::MultipleStructure.

corr() [1/2]

virtual float gridpp::StructureFunction::corr ( const Point &  p1, const Point &  p2  ) const

pure virtual

Correlation between two points.

Parameters

p1	First point
p2	Other point

Returns

Correlation between points

Implemented in gridpp::CrossValidation, gridpp::CressmanStructure, gridpp::LinearStructure, gridpp::PowerlawStructure, gridpp::ToarStructure, gridpp::SoarStructure, gridpp::BarnesStructure, and gridpp::MultipleStructure.

corr() [2/2]

vec gridpp::StructureFunction::corr ( const Point &  p1, const std::vector< Point > &  p2  ) const

virtual

Reimplemented in gridpp::LinearStructure, gridpp::PowerlawStructure, gridpp::ToarStructure, gridpp::SoarStructure, gridpp::BarnesStructure, and gridpp::MultipleStructure.

corr_background() [1/2]

float gridpp::StructureFunction::corr_background ( const Point &  p1, const Point &  p2  ) const

virtual

Correlation between a background point and an observation points.

Parameters

p1	Background point
p2	Observation point

Returns

Correlation between background and observation points

Reimplemented in gridpp::CrossValidation.

corr_background() [2/2]

vec gridpp::StructureFunction::corr_background ( const Point &  p1, const std::vector< Point > &  p2  ) const

virtual

Reimplemented in gridpp::CrossValidation.

cressman_rho()

float gridpp::StructureFunction::cressman_rho ( float  dist, float  length  ) const

protected

Cressman correlation function.

Parameters

dist	Distance between points. Same units as 'length'
length	Length scale

Returns

Cressman rho

linear_rho()

float gridpp::StructureFunction::linear_rho ( float  diff, float  min_corr  ) const

protected

Linear correlation function.

Parameters

diff	Difference between points of a variable with values ranging from 0 to 1, resulting in a difference bounded between -1 and 1 (e.g., Land/Sea area fraction).
min_corr	Minimum allowed correlation value. If less than 0, the function returns 1.

Returns

linear rho

localization_distance()

float gridpp::StructureFunction::localization_distance ( const Point &  p ) const

virtual

Maximum distance for which an observation can have an impact (localization)

Returns

Distance [m]

Reimplemented in gridpp::CrossValidation, gridpp::LinearStructure, gridpp::PowerlawStructure, gridpp::ToarStructure, gridpp::SoarStructure, gridpp::BarnesStructure, and gridpp::MultipleStructure.

powerlaw_rho()

float gridpp::StructureFunction::powerlaw_rho ( float  dist, float  length  ) const

protected

Powerlaw correlation function.

Parameters

dist	Distance between points. Same units as 'length'
length	Length scale

Returns

powerlaw rho

soar_rho()

float gridpp::StructureFunction::soar_rho ( float  dist, float  length  ) const

protected

Compactly supported second-order autoregressive correlation function.

Parameters

dist	Distance between points. Same units as 'length'
length	Length scale

Returns

SOAR rho

toar_rho()

float gridpp::StructureFunction::toar_rho ( float  dist, float  length  ) const

protected

Compactly supported third-order autoregressive correlation function.

Parameters

dist	Distance between points. Same units as 'length'
length	Length scale

Returns

TOAR rho

Member Data Documentation

default_min_rho

const float gridpp::StructureFunction::default_min_rho = 0.0013

static

m_localization_distance

float gridpp::StructureFunction::m_localization_distance

protected

---

The documentation for this class was generated from the following files:

• /home/thomasn/repos/gridpp/include/gridpp.h
• /home/thomasn/repos/gridpp/src/api/structure.cpp
